Prestressed, Precast Concrete Hollow Core Light / Heavy Duty Boundary Wall Panels.
Pre-stressed Precast concrete Hollow core Boundary wall or Compound wall & Supporting ‘H’ column are made by Concrete Extrusion machine & reinforced with Carbon steel wires, which works without the need of any Mould or Form work for production.Pre-stressed Precast concrete Hollow core Boundary wall or Compound wall & Supporting ‘H’ column are made by Concrete Extrusion machine & reinforced with Carbon Steel wires, which works without the need of any Mould or Form-work for production.

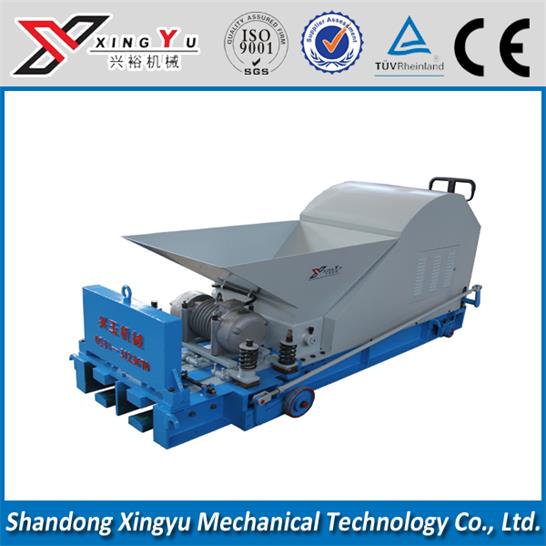

H-beam machine:
Advantage:
Brick walls is time consuming to erect and costly to keep maintaining. Our Pre-stressed Precast concrete Hollow core Boundary wall or Compound walls overcome these handicaps of traditional brick walls.
Extrusion of Boundary wall slab / panel is 5 times Faster, Easier & Most Economical solution for production compared to the conventional Technique of individual panel cast-in-site.
Extrusion speed of the machine for the Light-duty Boundary wall slab is between 1.8 to 2 meters per Minute with a limited labour force. (i.e. it extrudes in one minute one panel of 7 feet).
Being Hollow it’s self-weight is reduce, saves on concrete weight & thus save money with same load bearing capacity as compared with cast-in-situ.

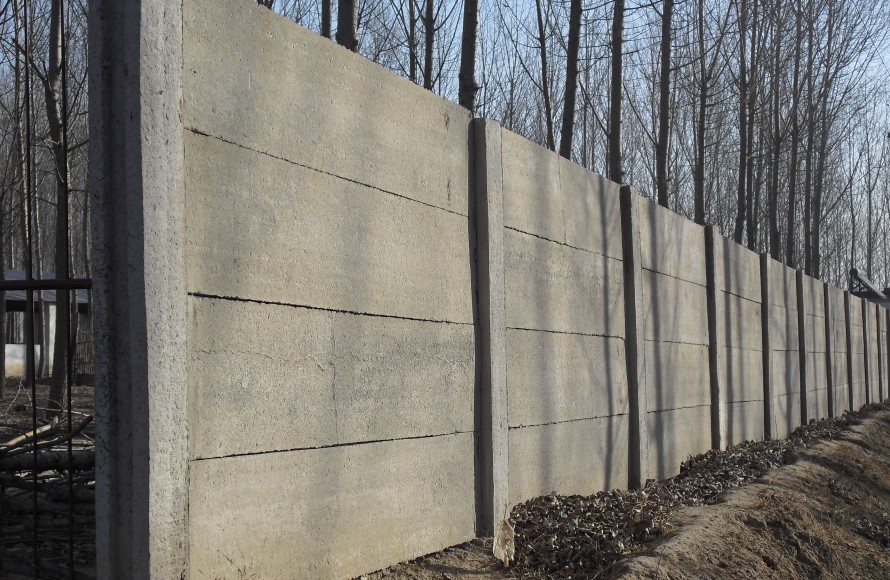

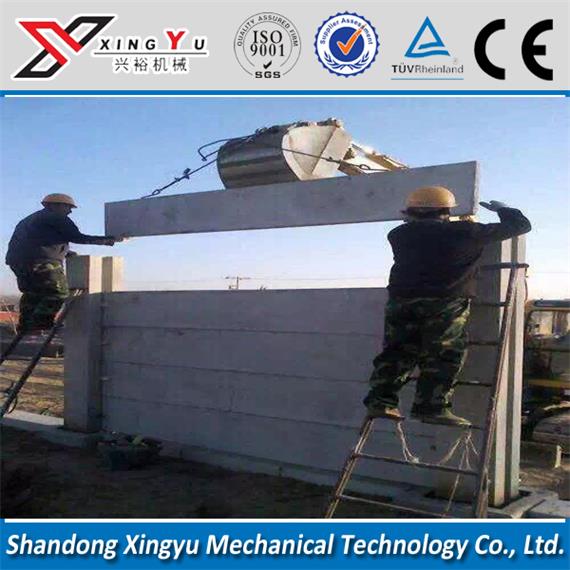

Our Precast Concrete Boundary walls are made/ erected with the help of Supporting ‘H’ column / posts erected directly into the ground which have grooves to accommodate Boundary wall slabs / panels.
This can be also installed vertically without post as a boundary wall or cold storage rooms or industrial sheds, Pre-fabricated mezzanine floors etc.
Parameter of concrete fence wall machine:
| Sr. No. | Model | Size of Slab (mm) | Power (kw) | Weight / meter (kg) |
|---|---|---|---|---|
| 1 | ZB50-300-2 |
Thickness - 50 Width - 300 |
1.35 | 32 |
| 2 | ZB90-600 |
Thickness - 90 Width - 600 |
7.7 | 85 |
| 3 | ZB100-600 |
Thickness - 100 Width - 600 |
7.7 | 98 |
Parameter of concrete fence post machine:
| Sr. No. | Model | Size of Slab (mm) |
|---|---|---|
| 1 | ZB150-150-2 |
Thickness - 150 Width - 150 |
| 2 | ZB180-280-2 |
Thickness - 180 Width - 280 |
We can design different type of concrete fence wall&post machine according to your requirements.
Producing Site of concrete fence wall&post machine:
1. Prestressed concrete fence wall&post producing bed prepare and tensioning.
1.1 Cleaning the producing bed：Clean the concrete residue on the producing bed with special tools and make the platform surface clean, smooth.
1.2 Painting parting agent：The adopted parting agent must be up to the required standard without harmful
chemical substance.
1.3 Distribute the steel wire.Steel wire of low relaxationand stress relieving is adopted .
2. Precast concrete fence wall&post materialcompositions and quality standard
1.1 Cement：32.5R or 42.5R Portland cement and ordinary Portland cement
1.2 Sand：Medium sand
1.3 Stone：Rubble and broken pebble are optional
1.4 Water：Drinking water without harmful substance
1.5 Dry concrete is used for precast concrete fence wall&post with a strength grade of C30 or C40.
3. Prestress concrete fence wall&post technological flow
Cleaning the producing bed→ painting parting agent→ distribute steel wire and fix→tensioning the steel wire→ mix and transportation of concrete → slab molding →make testing block→ covering and curing →testing block intensity →relief the steel wire→ cutting slab→ storage
We can design and manufacture all kinds of concrete forming equipment according to customer's demands. Meanwhile we also can provide our customers a complete set of technology and solution for all producing flow.
